Šifra 884647
HRLK-PO 100KA

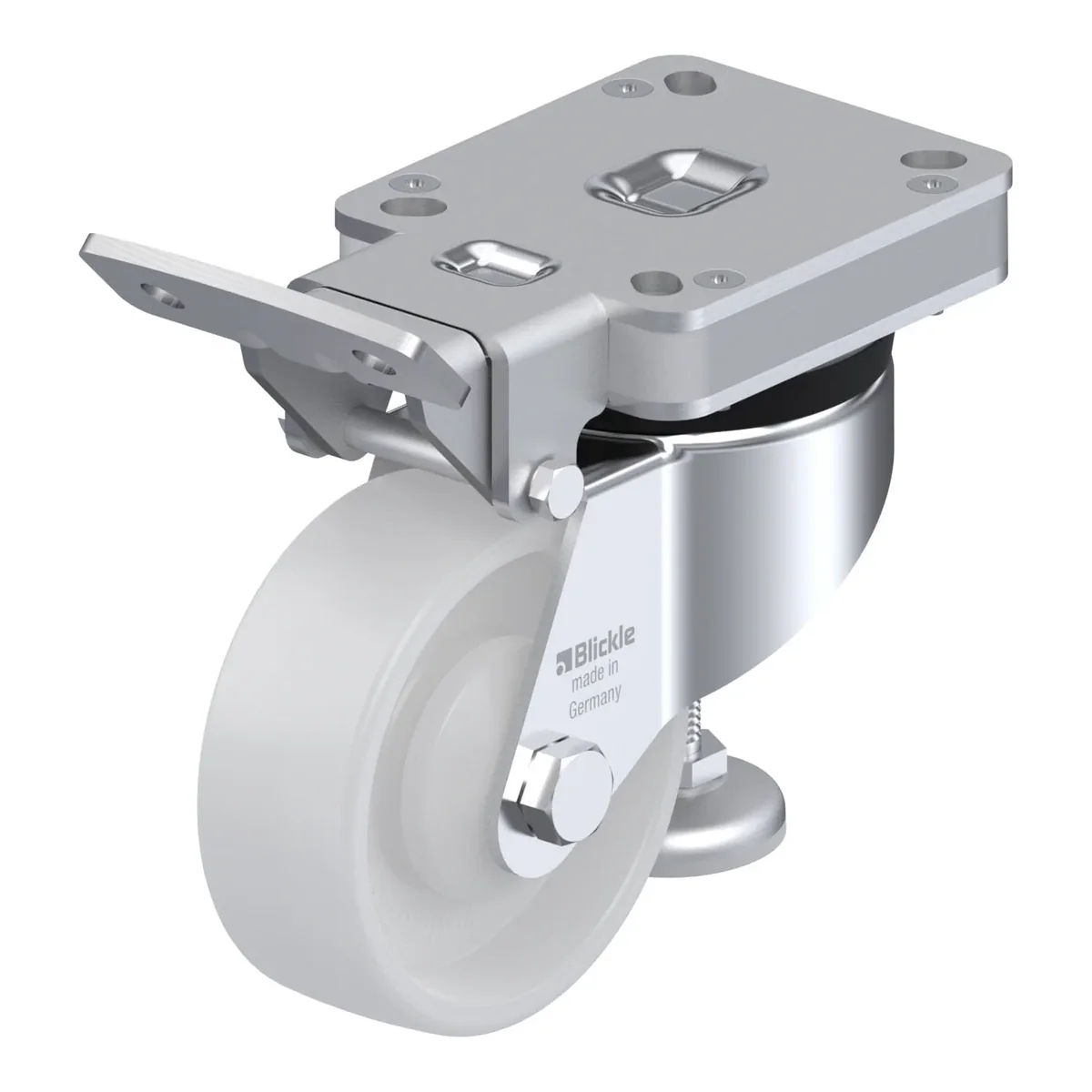

Nivelirni točkić, Blickle, Made in Germany
Ukratko: HRLK-PO 100KA je nivelirni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 230 kg pri 4 km/h (statički 575 kg). Ukupna visina je 140 mm. Cijena je 221.95 KM s PDV-om.
Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, nylon wheel, with synthetic thread guard, small
221.95 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 884647 |
|---|---|
| EAN | 4047526216696 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 230 kg |
| Statička nosivost | 575 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- steel truck lock with rubber pad
- height adjustment with lever
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- with synthetic thread guard, small
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
