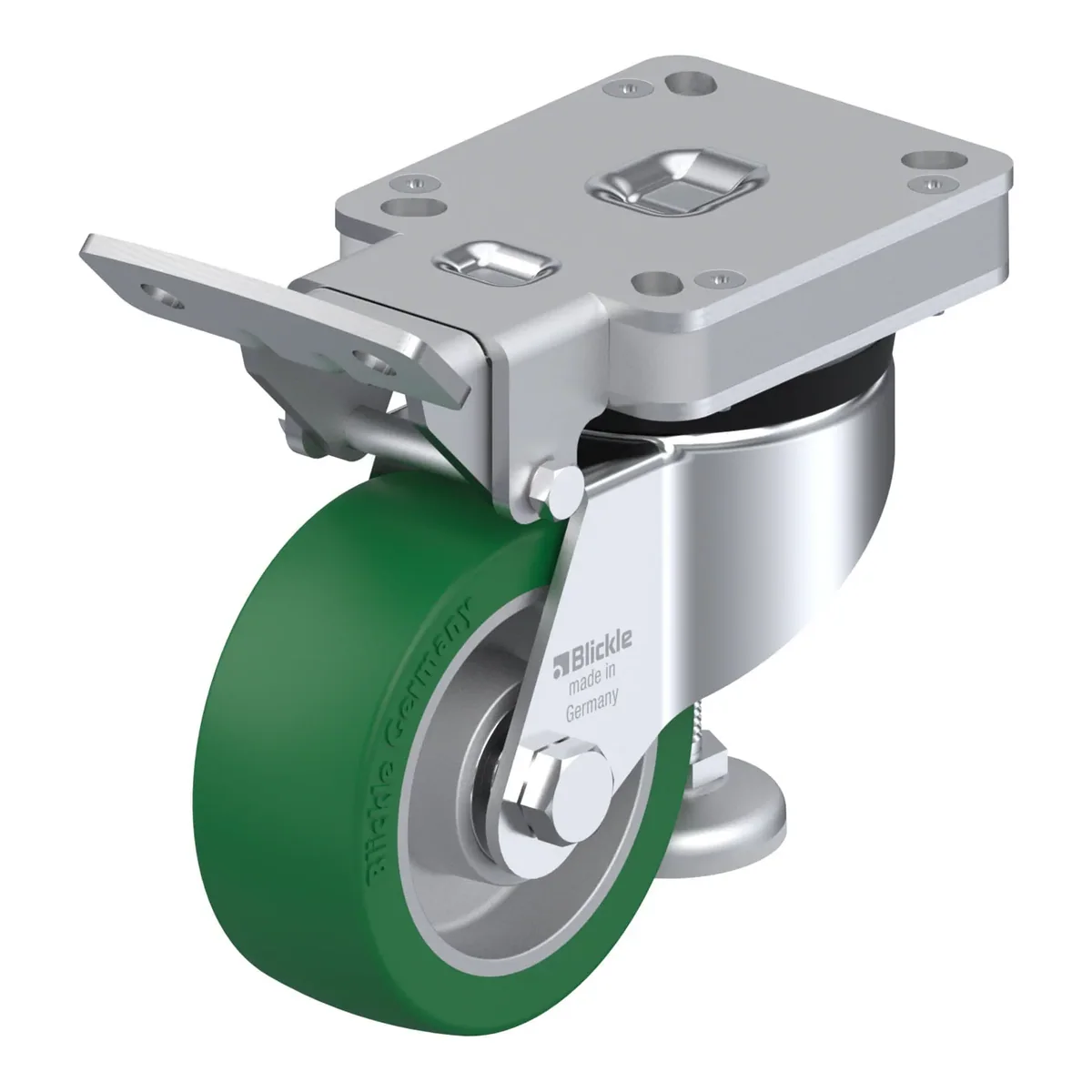

HRLK-ALST 100K – nivelirni točkić Blickle

Šifra 896690

HRLK-ALST 100K

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLK-ALST 100K je nivelirni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 230 kg pri 4 km/h (statički 575 kg). Ukupna visina je 140 mm. Cijena je 265.52 KM s PDV-om.

Levelling castor, with fixed-position operating lever and integrated truck lock, with top plate fitting, heavy duty wheel, with Blickle Softhane® polyurethane tread, with aluminium wheel centre

265.52 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla896690
EAN4047526307974
Promjer točka100 mm
Širina točka40 mm
Ukupna visina140 mm
Nosivost pri 4 km/h230 kg
Statička nosivost575 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset65 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel truck lock with rubber pad
  • height adjustment with lever

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
