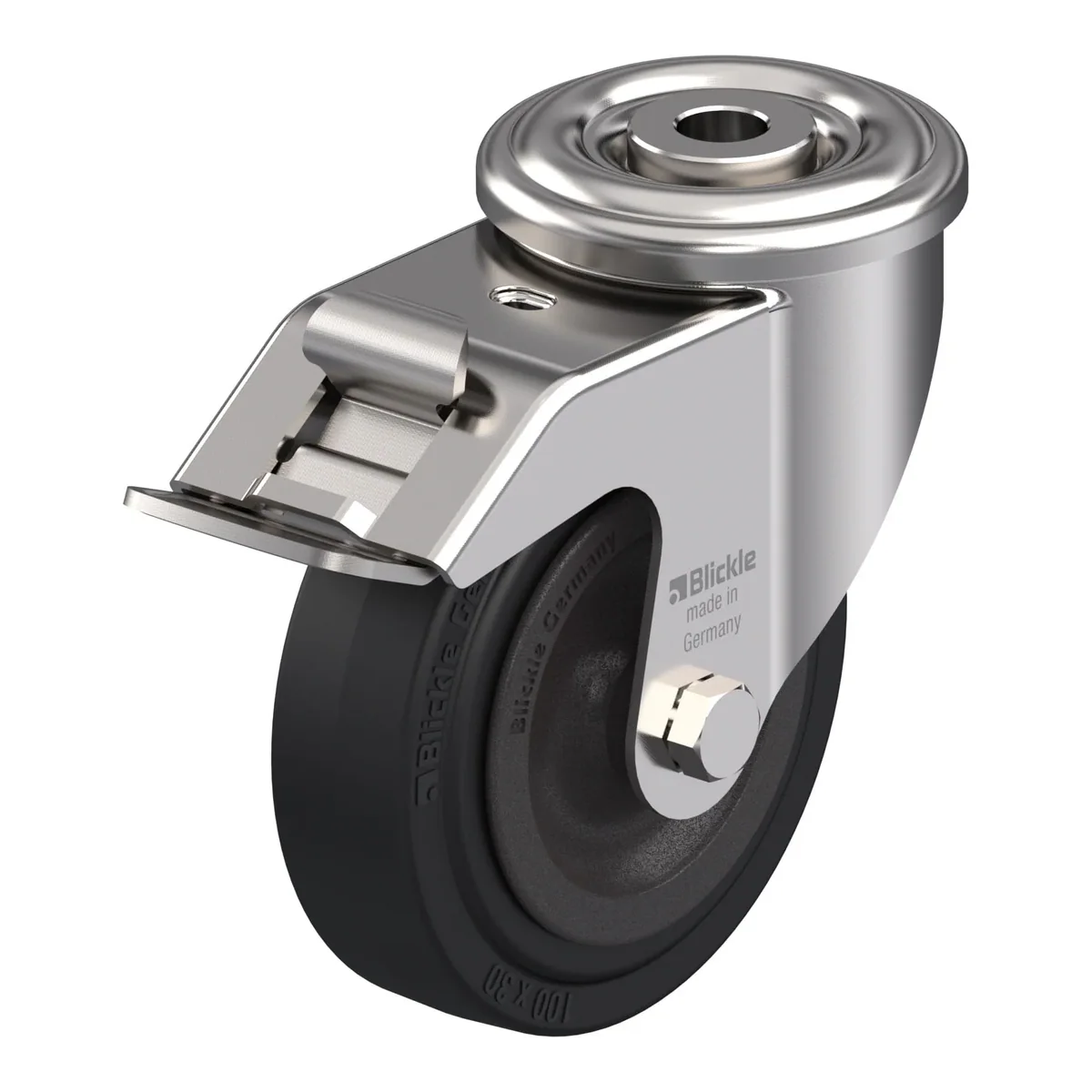

LIXR-VKHT 100G-FI-OF – okretni točkić Blickle

Šifra 745272

LIXR-VKHT 100G-FI-OF

Okretni točkić, Blickle, Made in Germany

Ukratko: LIXR-VKHT 100G-FI-OF je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Cijena je 191.94 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, heat-resistant, with brake system 'stop-fix', Blickle TempLine® wheel Special, with solid rubber tyres, with synthetic rim, heat-resistant

191.94 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla745272
EAN4047526085995
Promjer točka100 mm
Širina točka30 mm
Ukupna visina125 mm
Nosivost pri 4 km/h100 kg
Statička nosivost250 kg
Offset37 mm
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • grease-free as standard (“-OF”)
  • all parts including axle material are corrosion-resistant

Točak

  • tyre: highly heat-resistant solid rubber, hardness 85 Shore A, colour black
  • rim: highly heat-resistant nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -30 °C to +260 °C
  • oven temperature temporarily up to +300 °C, wheel temperature must not exceed +260 °C
  • tyre flattening recovers when in motion under load
