Šifra 28530

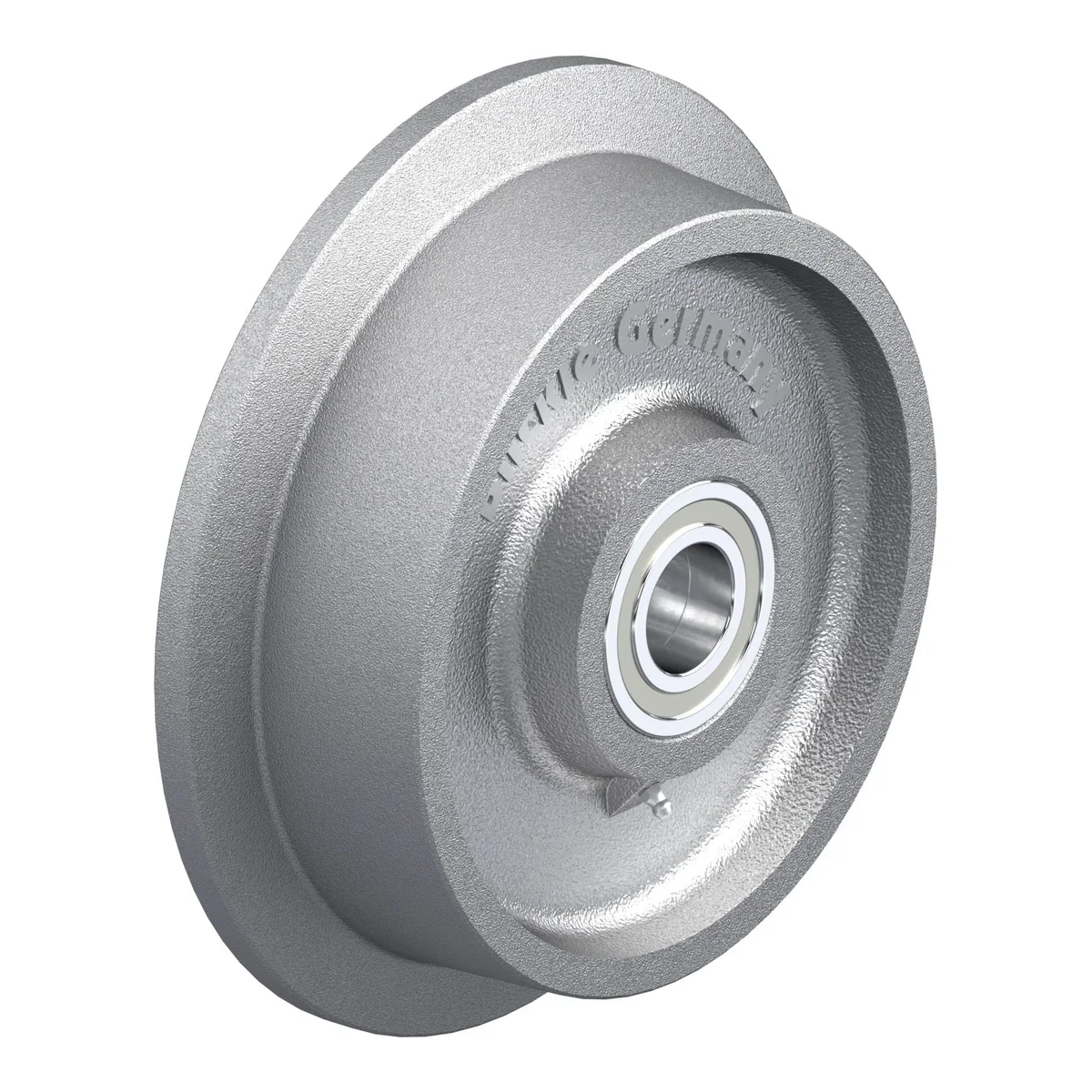

SPK 251K
Kotač s prirubnicom, Blickle, Made in Germany
Ukratko: SPK 251K je kotač s prirubnicom Blickle promjera 250 mm, širine 80 mm, nosivosti 3500 kg pri 4 km/h (statički 8750 kg). Cijena je 439.98 KM s PDV-om.
Cast iron flanged wheel
439.98 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 28530 |
|---|---|
| EAN | 4047526028534 |
| Promjer točka | 250 mm |
| Širina točka | 80 mm |
| Nosivost pri 4 km/h | 3500 kg |
| Statička nosivost | 8750 kg |
| Promjer otvora osovine | 40 mm |
| ESD zaštita | da |
Točak
- rugged grey cast iron, hardness 180–220 HB
- with grease nipple from wheel Ø 125 mm
- machined flange and tread
- 3° taper tread to axle
- extremely low rolling resistance
- outstanding wear resistance
- lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -20 °C to +120 °C
- to be lubricated according to the application temperature
- the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPK 50G–SPK 200K, SPK 250G, SPK 250K: A45SPK 201K, SPK 251K: A55
