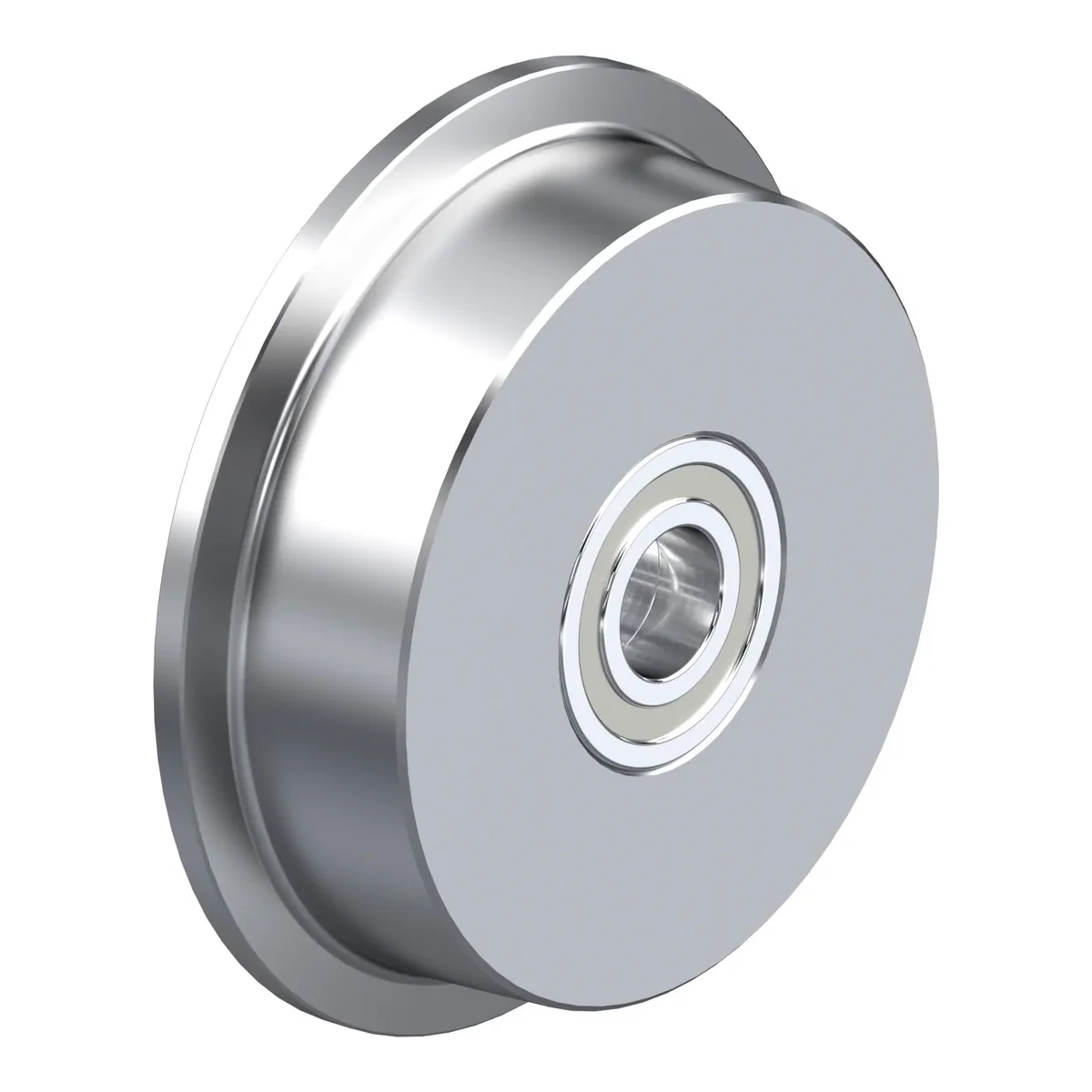

SPKVS 250K – kotač s prirubnicom Blickle

Šifra 253278

SPKVS 250K

Kotač s prirubnicom, Blickle, Made in Germany

Ukratko: SPKVS 250K je kotač s prirubnicom Blickle promjera 250 mm, širine 75 mm, nosivosti 4000 kg pri 4 km/h (statički 10000 kg). Cijena je 1172.14 KM s PDV-om.

Solid steel flanged wheel

1172.14 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla253278
EAN4047526253271
Promjer točka250 mm
Širina točka75 mm
Nosivost pri 4 km/h4000 kg
Statička nosivost10000 kg
Promjer otvora osovine45 mm
Ne ostavlja tragoveda
ESD zaštitada

Točak

  • heat-treatable steel, machined, hardness 190–230 HB
  • lightly-oiled surface
  • 3° taper tread to axle
  • extremely low rolling resistance
  • extremely high static and dynamic load capacity

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • operating temperature:ball bearing version: -20 °C to +120 °Cheat-resistant ball bearing version: -30 °C to +300 °C, load capacity reduced by 50% at +300 °C
  • the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKVS 50K–SPKVS 200K: A45SPKVS 250K: A55SPKVS 300K–SPKVS 400K: A65
