Šifra 608323
SPKVS 150K

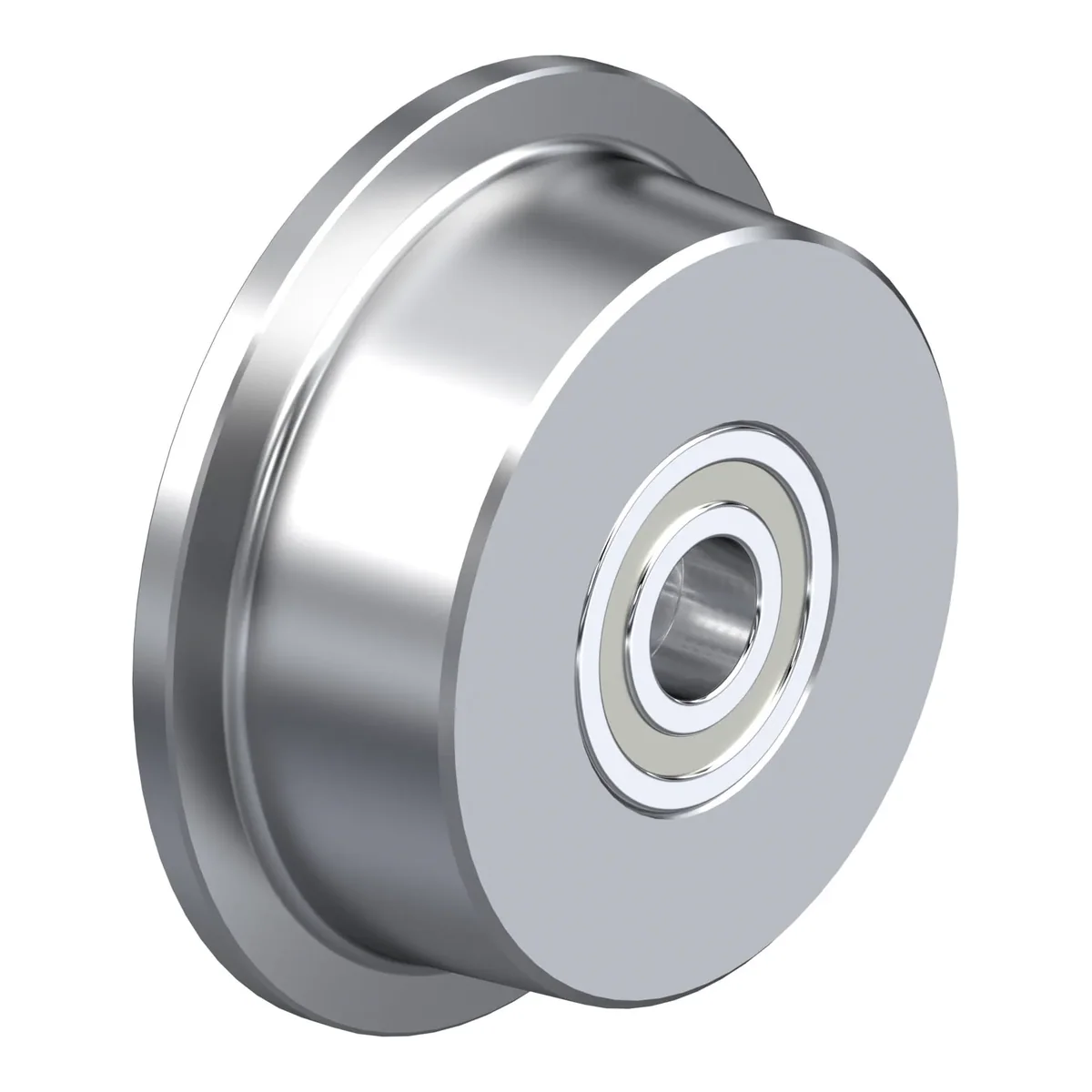

Kotač s prirubnicom, Blickle, Made in Germany
Ukratko: SPKVS 150K je kotač s prirubnicom Blickle promjera 150 mm, širine 60 mm, nosivosti 2000 kg pri 4 km/h (statički 5000 kg). Cijena je 320.65 KM s PDV-om.
Solid steel flanged wheel
320.65 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 608323 |
|---|---|
| EAN | 4047526608323 |
| Promjer točka | 150 mm |
| Širina točka | 60 mm |
| Nosivost pri 4 km/h | 2000 kg |
| Statička nosivost | 5000 kg |
| Promjer otvora osovine | 30 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Točak
- heat-treatable steel, machined, hardness 190–230 HB
- lightly-oiled surface
- 3° taper tread to axle
- extremely low rolling resistance
- extremely high static and dynamic load capacity
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature:ball bearing version: -20 °C to +120 °Cheat-resistant ball bearing version: -30 °C to +300 °C, load capacity reduced by 50% at +300 °C
- the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKVS 50K–SPKVS 200K: A45SPKVS 250K: A55SPKVS 300K–SPKVS 400K: A65
