Šifra 463901
SPKVSN 300/60H7

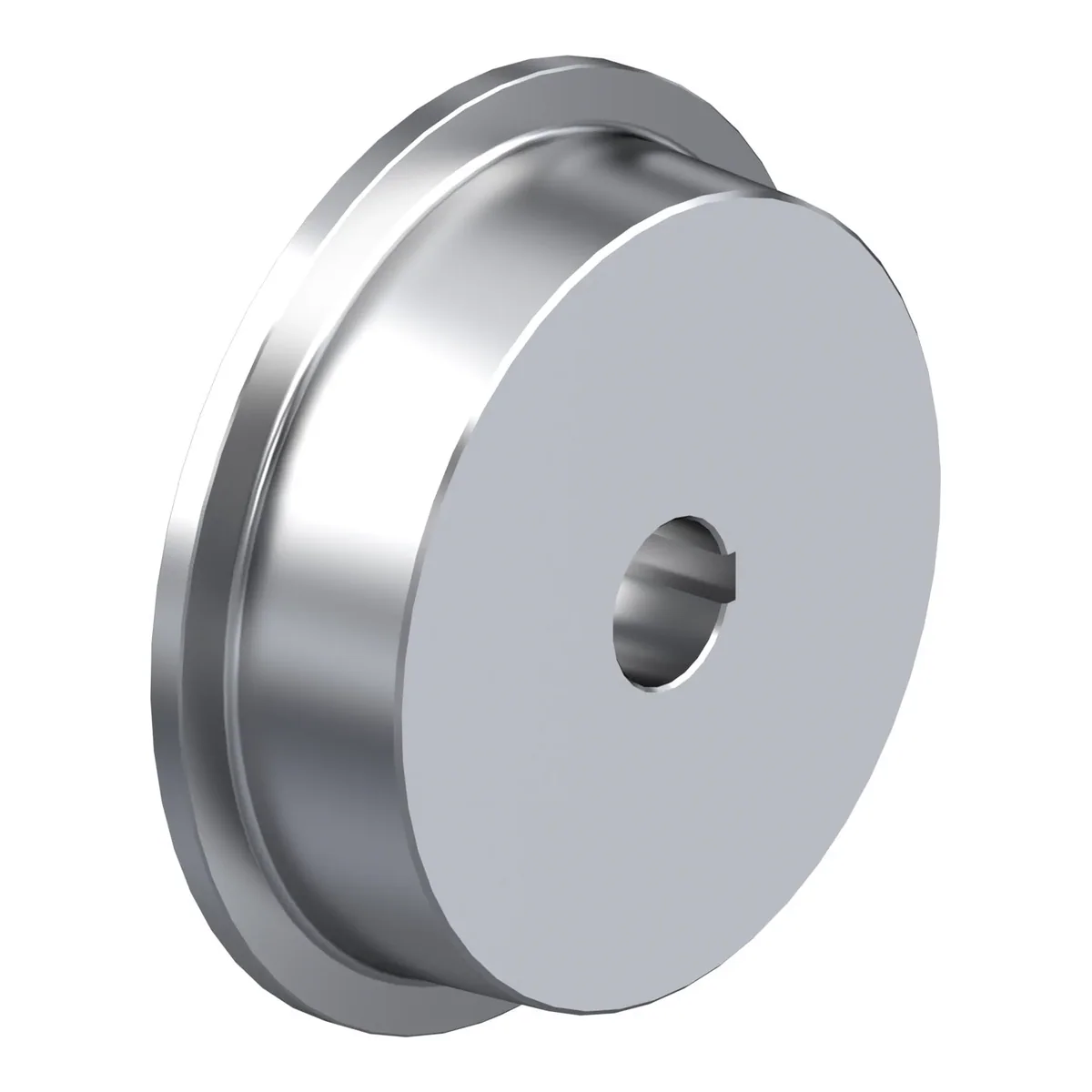

Kotač s prirubnicom, Blickle, Made in Germany
Ukratko: SPKVSN 300/60H7 je kotač s prirubnicom Blickle promjera 300 mm, širine 90 mm, nosivosti 7000 kg pri 4 km/h (statički 17500 kg). Cijena je 2558.74 KM s PDV-om.
Solid steel flanged drive wheel, with hub keyway
2558.74 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 463901 |
|---|---|
| EAN | 4047526105808 |
| Promjer točka | 300 mm |
| Širina točka | 90 mm |
| Nosivost pri 4 km/h | 7000 kg |
| Statička nosivost | 17500 kg |
| Promjer otvora osovine | 60 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Točak
- heat-treatable steel, hardness 190–230 HB
- lightly-oiled surface
- 3° taper tread to axle
- extremely low rolling resistance
- extremely high static and dynamic load capacity
- axle bore and hub keyway in accordance with DIN 6885
Dodatne karakteristike
- chemical resistance to many aggressive substances
- operating temperature: -100 °C to +600 °C, load capacity reduced by 50% at +300 °C
- the load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):SPKVSN 200: A45SPKVSN 250: A55SPKVSN 300: A65
