Šifra 849977

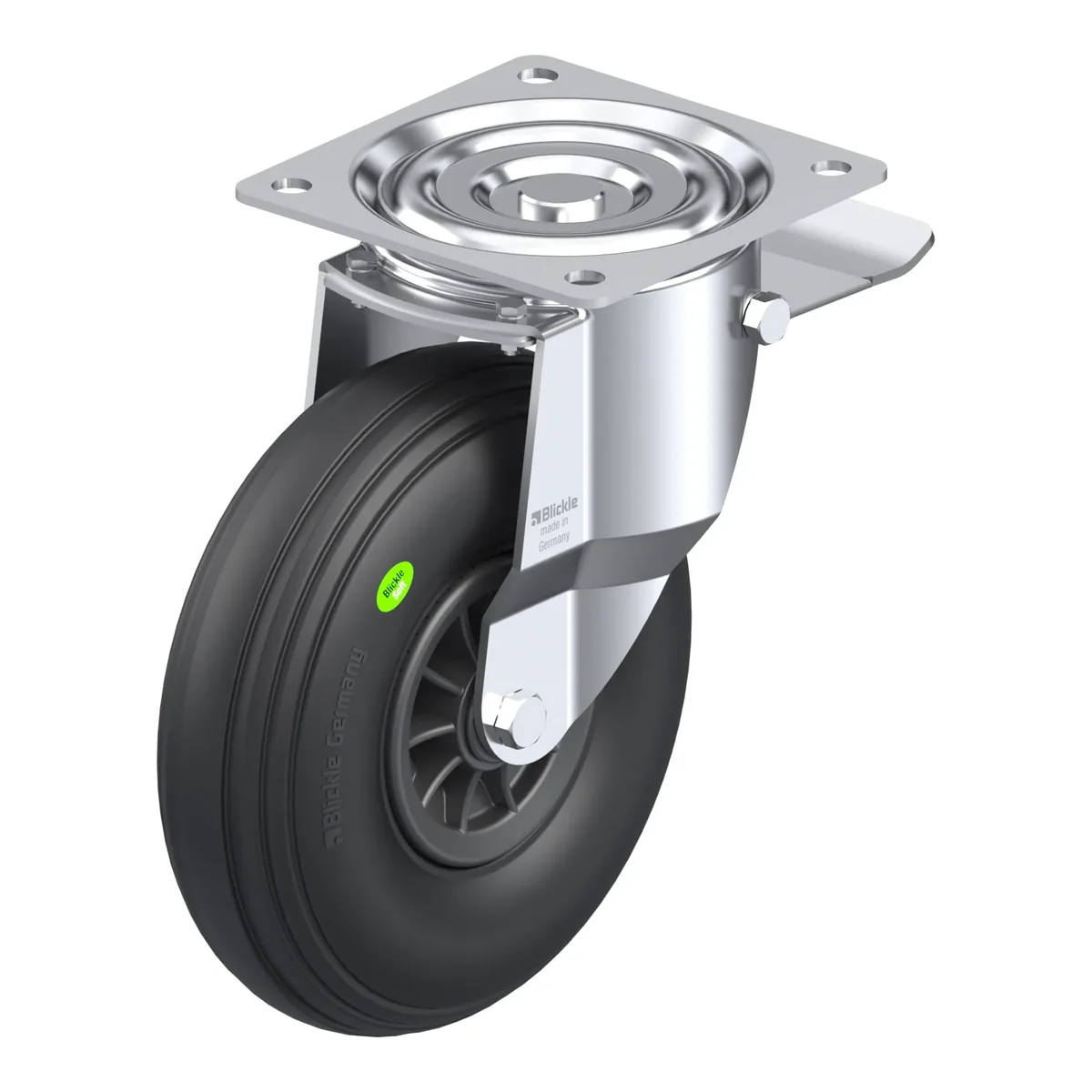

L-VWPP 260R-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: L-VWPP 260R-ST je okretni točkić Blickle promjera 260 mm, širine 85 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 308 mm. Cijena je 438.28 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-top', wheel, with 'Blickle Soft' soft rubber tyre, with synthetic rim
438.28 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 849977 |
|---|---|
| EAN | 4047526158552 |
| Promjer točka | 260 mm |
| Širina točka | 85 mm |
| Ukupna visina | 308 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 175 x 175 mm |
| Razmak rupa | 140.0 x 145.0 mm |
| Offset | 78 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: soft rubber "Blickle Soft", hardness 50 Shore A, colour black (wheel Ø 260 mm with additional hard rubber core)
- rim: high-quality polypropylene, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- wheel Ø 260 mm with additional hard rubber core
- puncture-proof alternatives for pneumatic tyres
