Šifra 550608
L-VW 260R

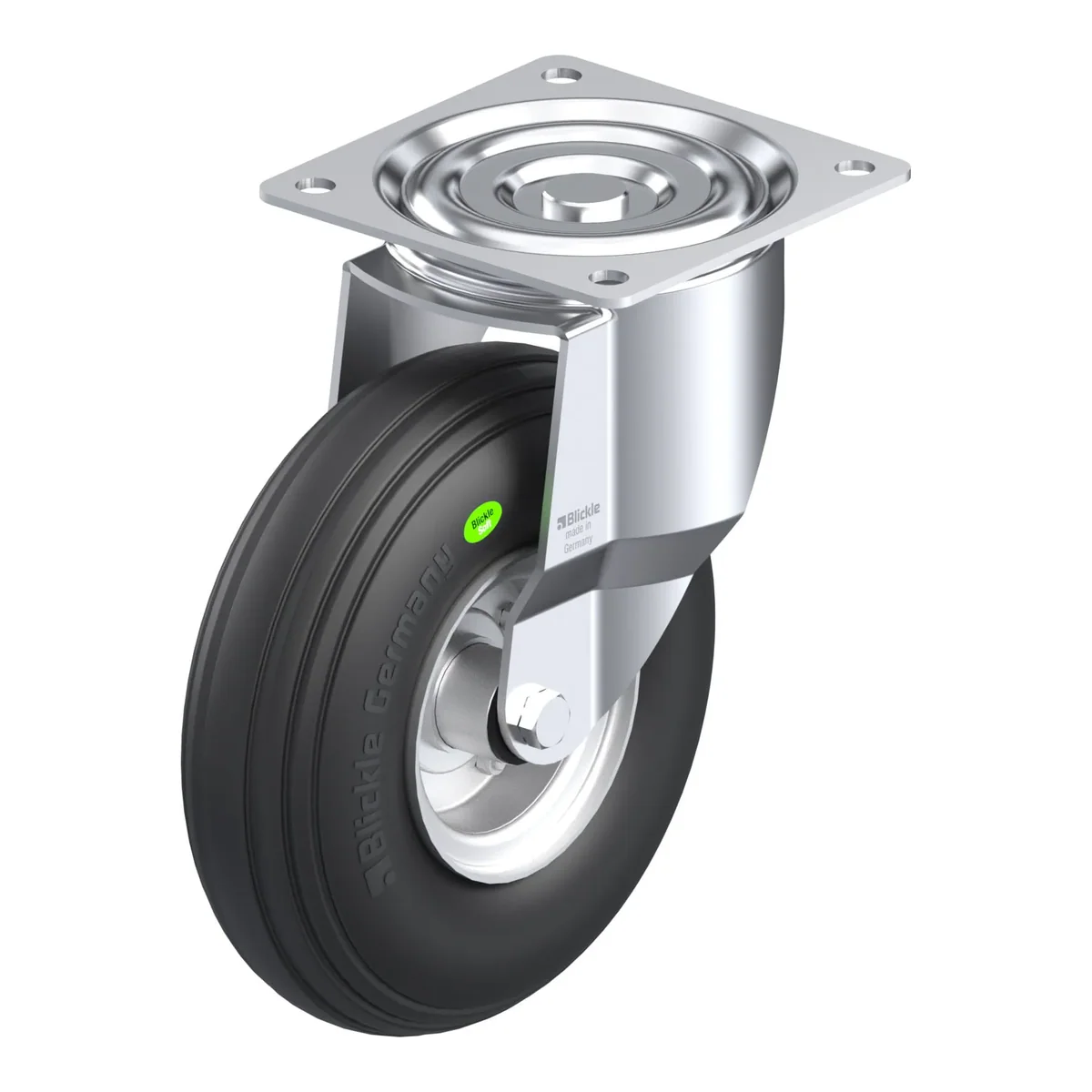

Okretni točkić, Blickle, Made in Germany
Ukratko: L-VW 260R je okretni točkić Blickle promjera 260 mm, širine 85 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 308 mm. Cijena je 385.91 KM s PDV-om.
Pressed steel swivel castor, medium duty design, with top plate fitting, wheel, with 'Blickle Soft' soft rubber tyre, with pressed steel rim
385.91 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 550608 |
|---|---|
| EAN | 4047526550608 |
| Promjer točka | 260 mm |
| Širina točka | 85 mm |
| Ukupna visina | 308 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 175 x 175 mm |
| Razmak rupa | 140.0 x 145.0 mm |
| Offset | 78 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: soft rubber "Blickle Soft", hardness 50 Shore A, colour black (wheel Ø 260 mm with additional hard rubber core)
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
- wheel Ø 260 mm with additional hard rubber core
- puncture-proof alternatives for pneumatic tyres
