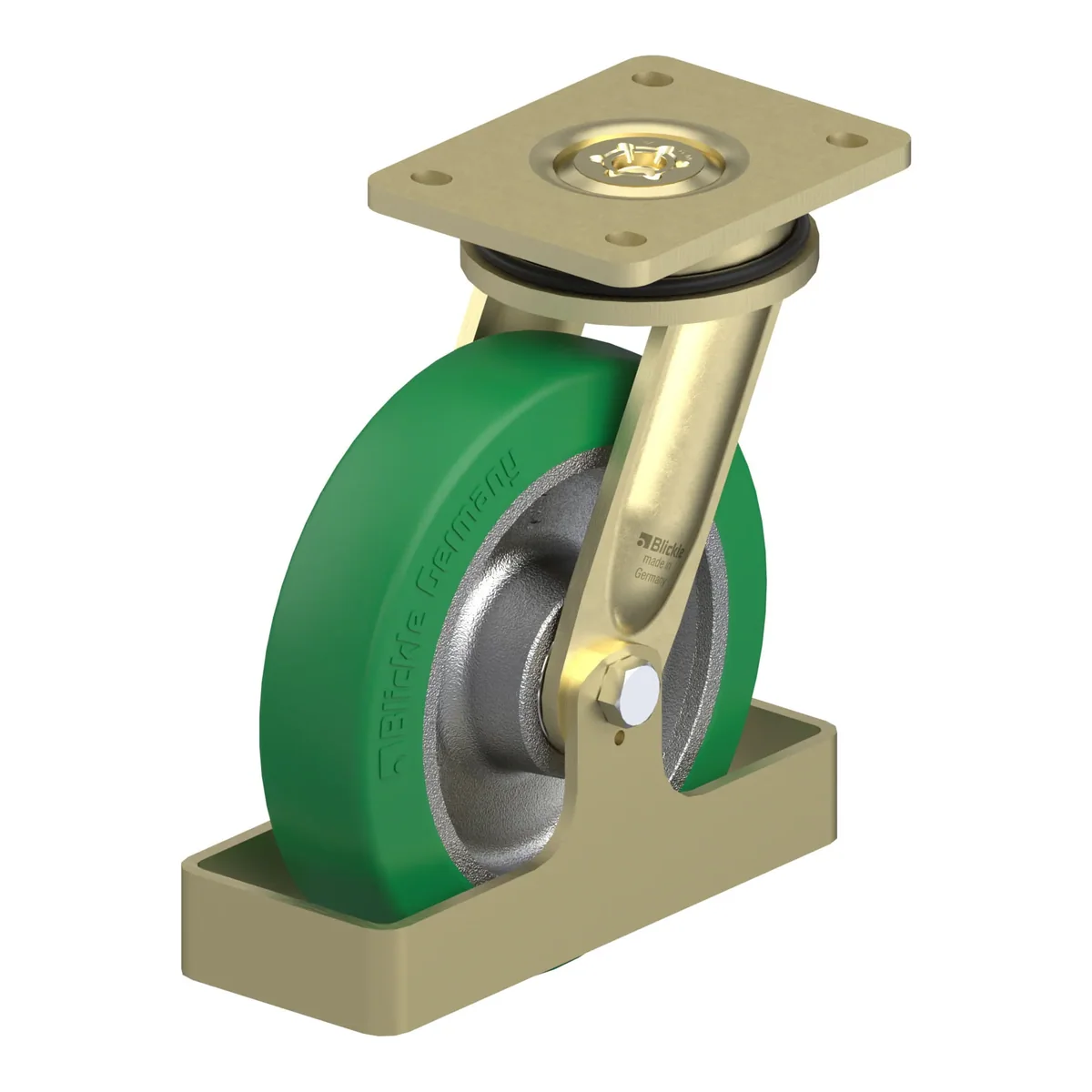

LS-GST 200K-FS – okretni točkić Blickle

Šifra 882615

LS-GST 200K-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: LS-GST 200K-FS je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 245 mm. Cijena je 513.58 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty swivel head, steel foot guard, heavy duty wheel, with Blickle Softhane® polyurethane tread, with cast iron wheel centre

513.58 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla882615
EAN4047526293932
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h800 kg
Statička nosivost2000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
  • wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 160 mm, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
