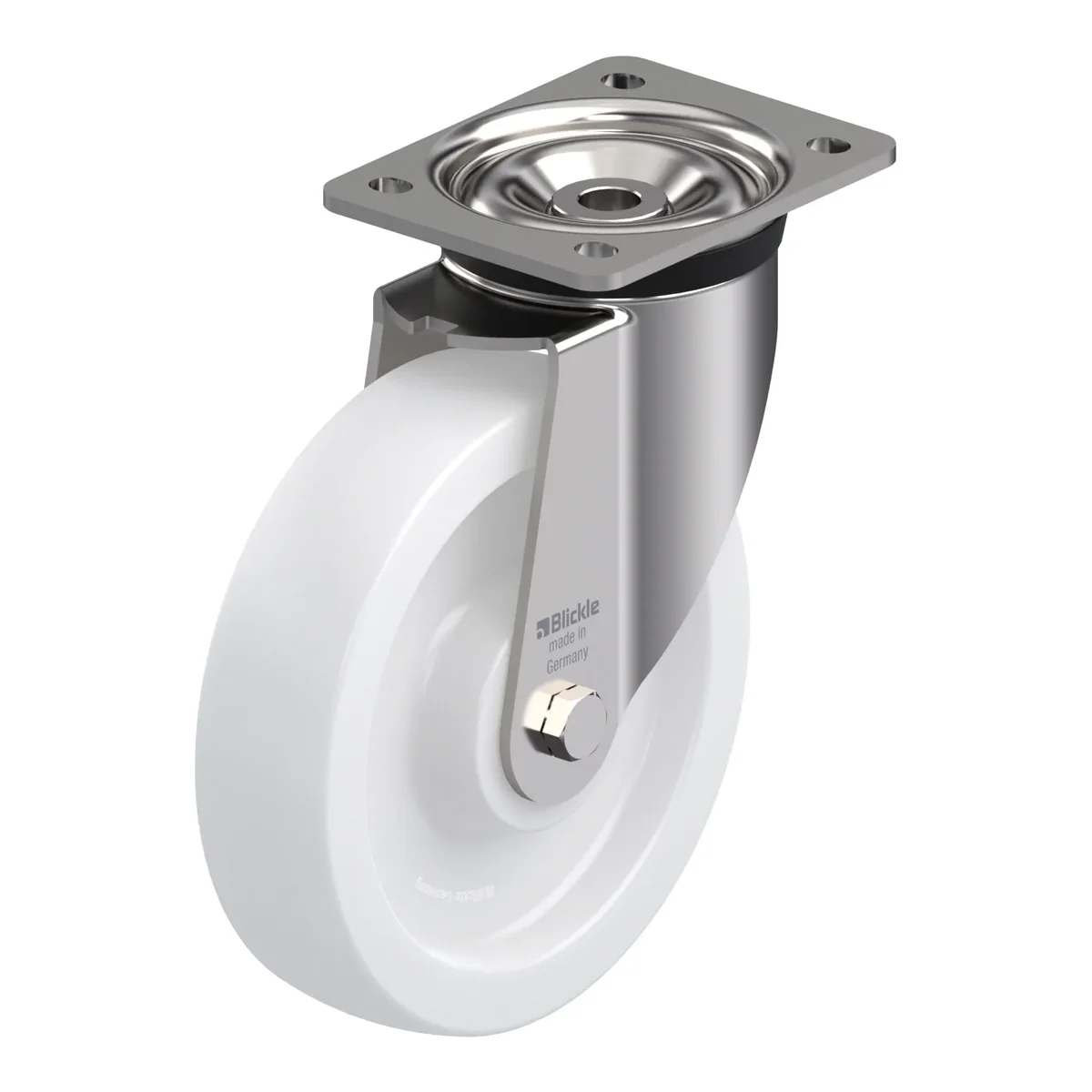

LKX-SPO 200G – okretni točkić Blickle

Šifra 30239

LKX-SPO 200G

Okretni točkić, Blickle, Made in Germany

Ukratko: LKX-SPO 200G je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 245 mm. Cijena je 449.42 KM s PDV-om.

Stainless steel heavy duty swivel castor, with top plate fitting, nylon heavy duty wheel

449.42 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla30239
EAN4047526030230
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h800 kg
Statička nosivost2000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset65 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
