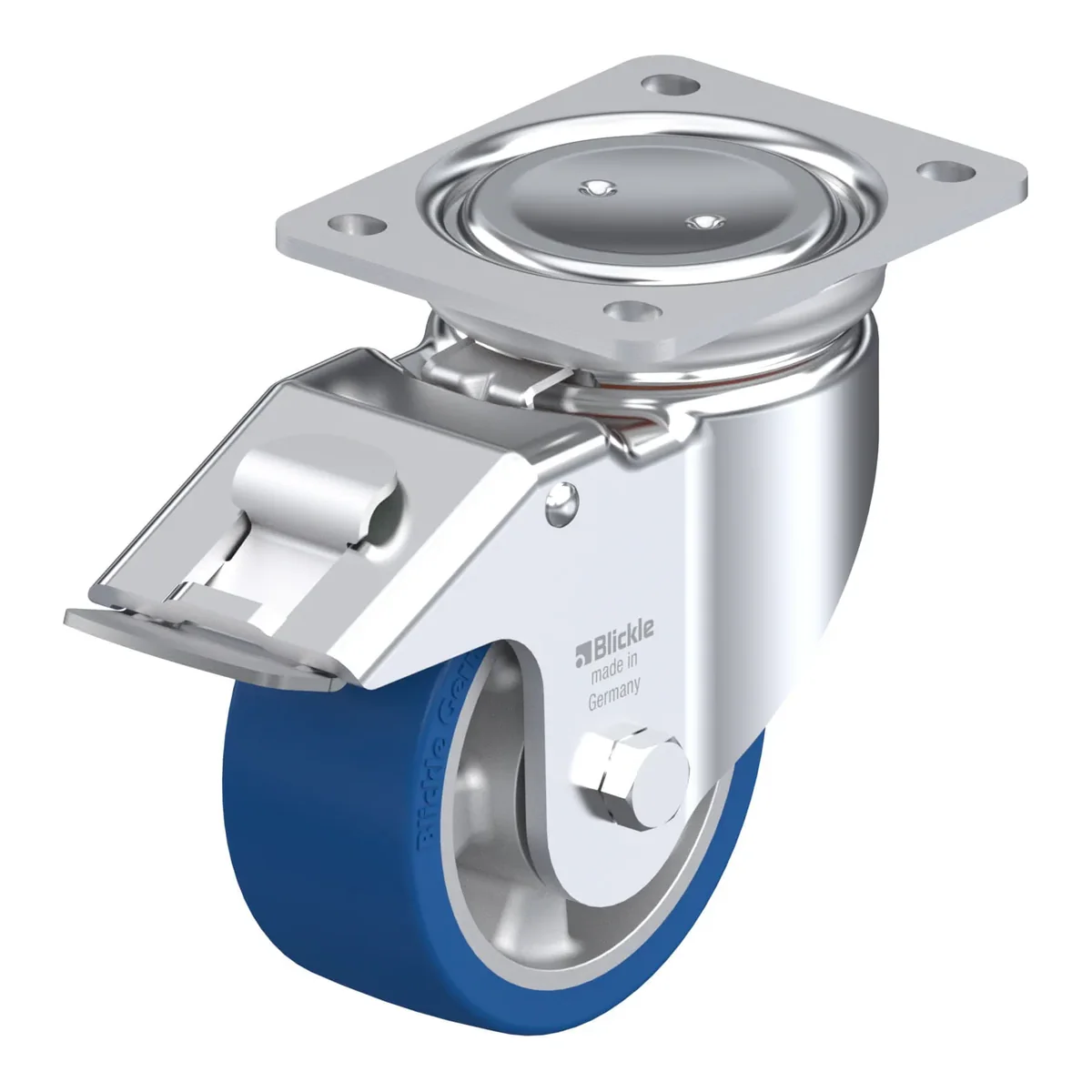

LUH-ALBS 127K-FI – okretni točkić Blickle

Šifra 755072

LUH-ALBS 127K-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LUH-ALBS 127K-FI je okretni točkić Blickle promjera 125 mm, širine 54 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 170 mm. Cijena je 342.94 KM s PDV-om.

Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre

342.94 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755072
EAN4047526115593
Promjer točka125 mm
Širina točka54 mm
Ukupna visina170 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset52 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • four-point ball bearing for extremely heavy loads
  • enclosed and sealed swivel head
  • particularly resistant to shocks and impact due tospecially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
