Šifra 757034

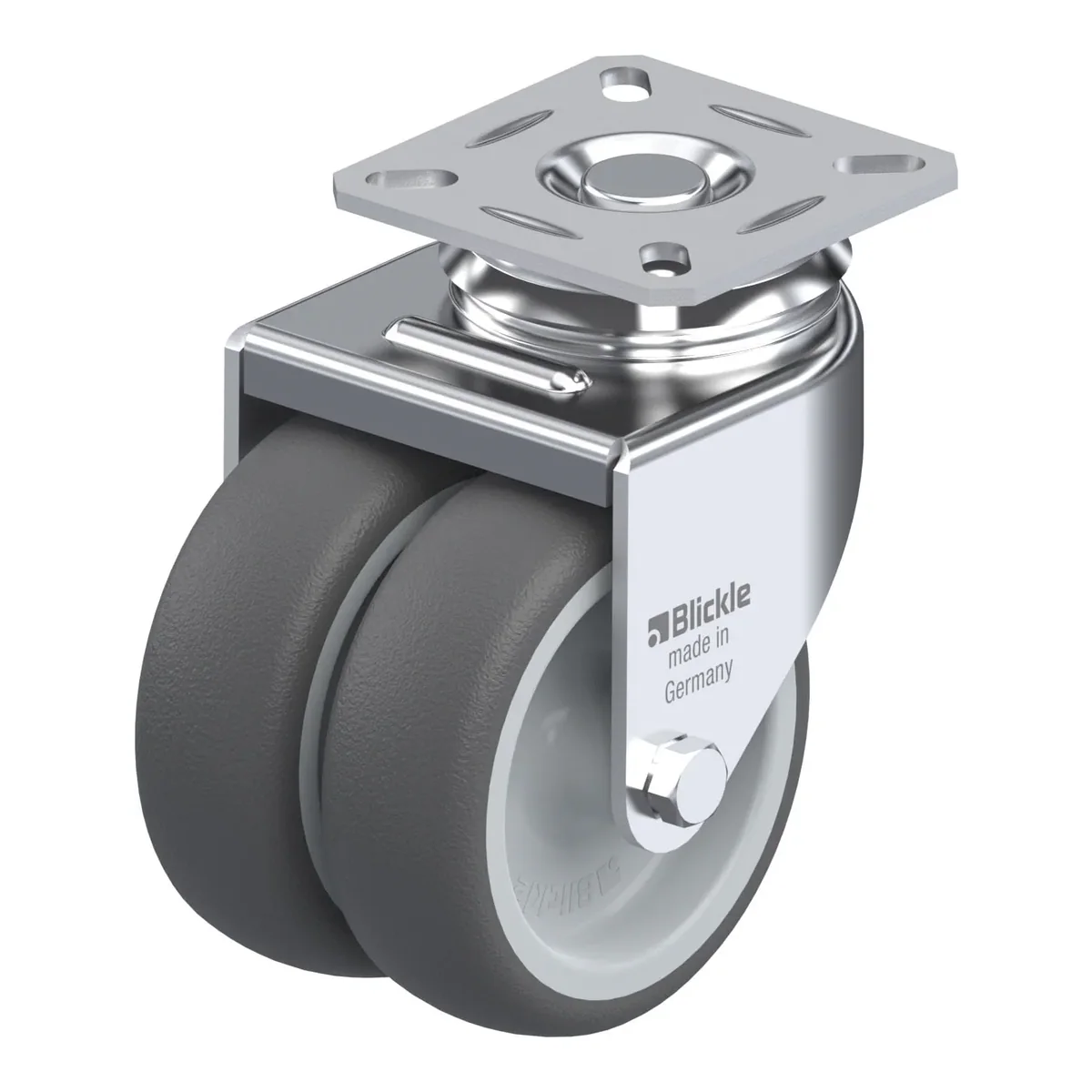

LDA-PATH 75G
Dvostruki točkić, Blickle, Made in Germany
Ukratko: LDA-PATH 75G je dvostruki točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 101 mm. Cijena je 40.26 KM s PDV-om.
Light duty twin wheel swivel castor, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre
40.26 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 757034 |
|---|---|
| EAN | 4047526117665 |
| Promjer točka | 75 mm |
| Širina točka | 25 mm |
| Ukupna visina | 101 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Offset | 34 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- pressed swivel head
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
