Šifra 290015
LDA-TPA 75G

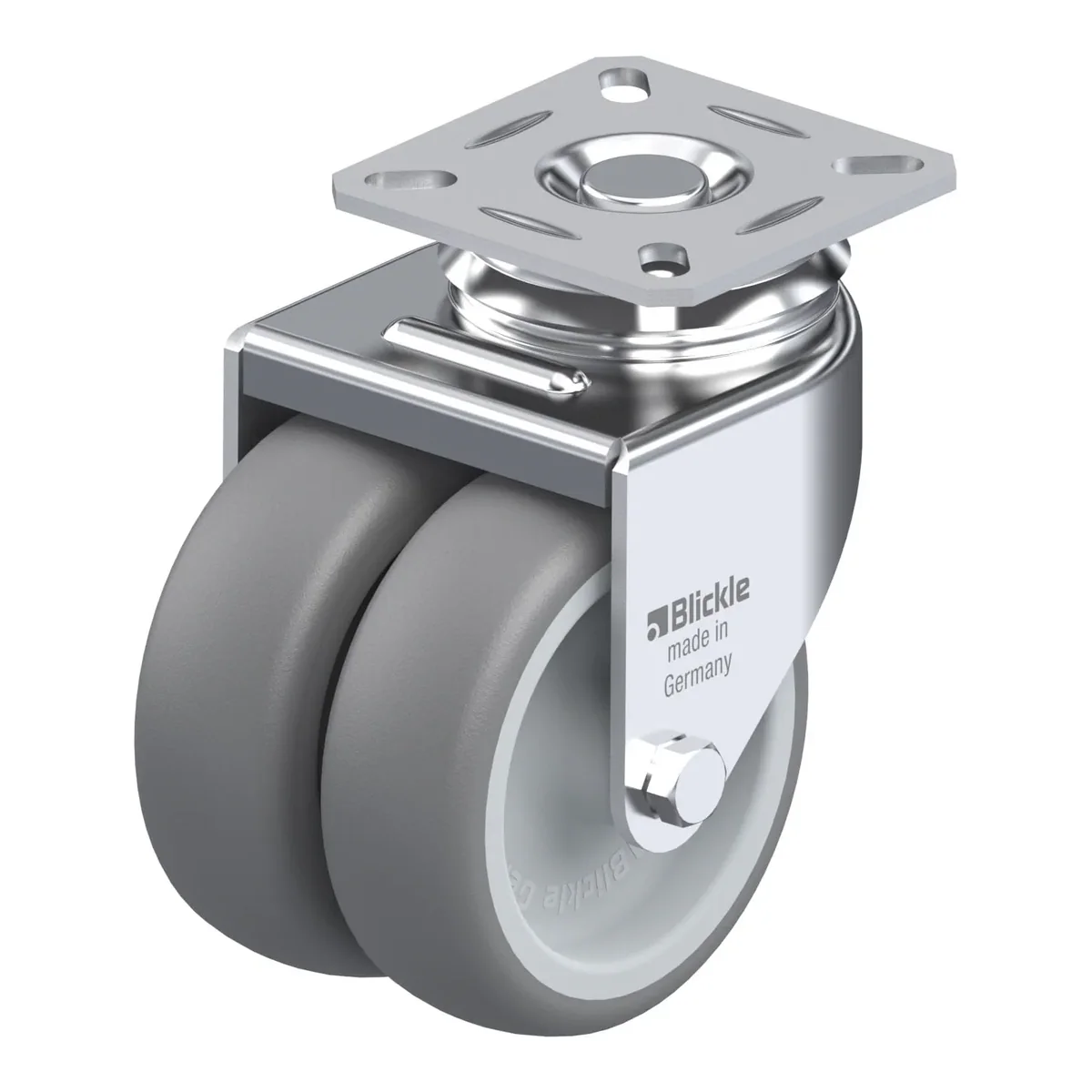

Dvostruki točkić, Blickle, Made in Germany
Ukratko: LDA-TPA 75G je dvostruki točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 101 mm. Cijena je 31.46 KM s PDV-om.
Light duty twin wheel swivel castor, with top plate fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre
31.46 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 290015 |
|---|---|
| EAN | 4047526290016 |
| Promjer točka | 75 mm |
| Širina točka | 25 mm |
| Ukupna visina | 101 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 60 x 60 mm |
| Razmak rupa | 25.0 x 30.0 mm |
| Offset | 34 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- pressed swivel head
Točak
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
