Šifra 949349

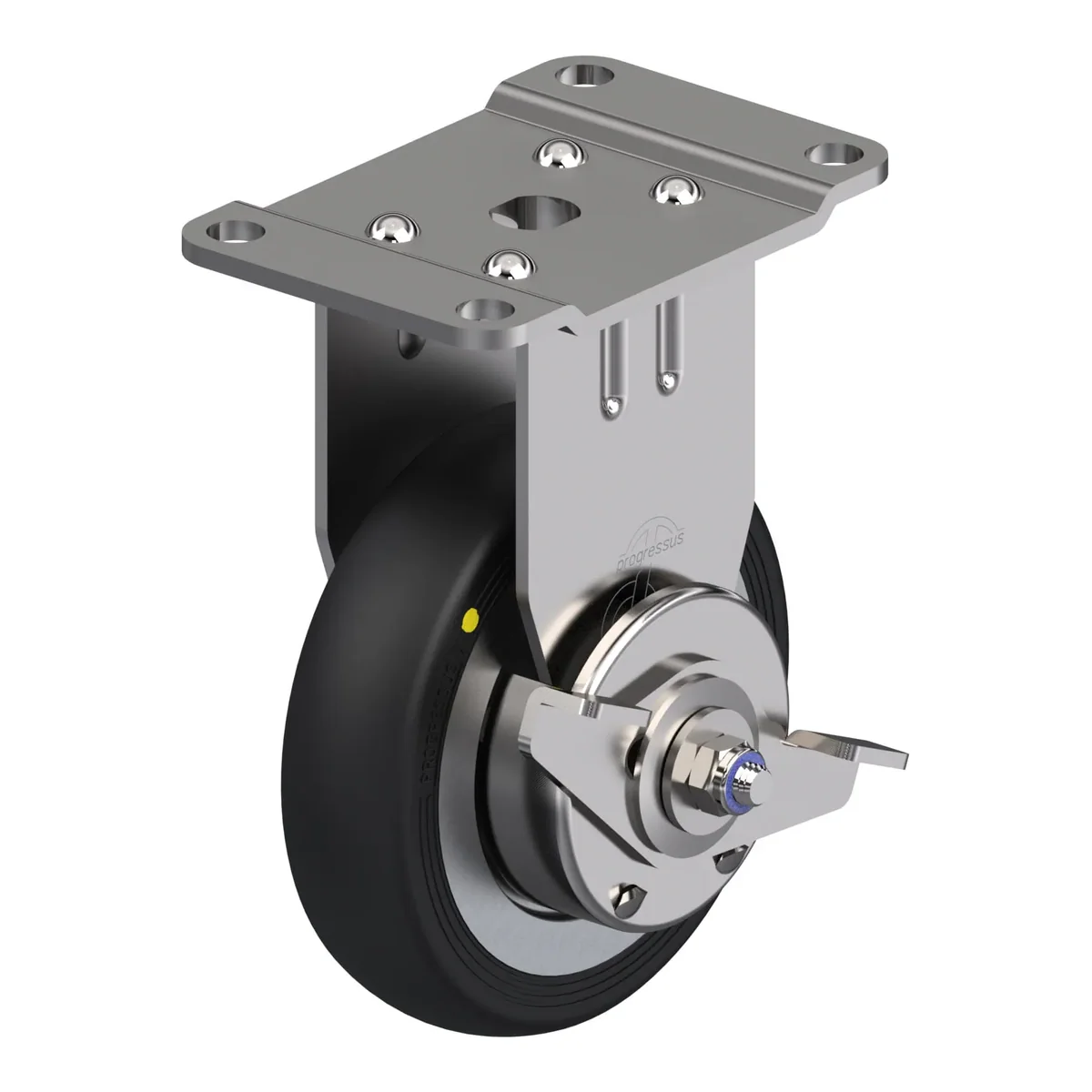

BPX-PGV 120XR-PG2-SRA-EL-FA
Fiksni točkić, Blickle, Made in Germany
Ukratko: BPX-PGV 120XR-PG2-SRA-EL-FA je fiksni točkić Blickle promjera 120 mm, širine 30 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 164 mm. Cijena je 534.56 KM s PDV-om.
Stainless steel fixed castor, with top plate fitting, with side wheel brake, wheel, with elastic solid rubber tyres, with aluminium wheel centre, with steel thread guard, electrically conductive
534.56 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 949349 |
|---|---|
| EAN | 4047526375263 |
| Promjer točka | 120 mm |
| Širina točka | 30 mm |
| Ukupna visina | 164 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Veličina ploče | 120 x 80 mm |
| Razmak rupa | 85.0 x 50.0 mm |
| Otporan na koroziju | da |
| ESD zaštita | da |
Točak
- tread: high-quality elastic solid rubber in smooth rolling quality, hardness 80 Shore A, colour black
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +134 °C, reduced load capacity over +35 °C
- suitable for autoclaves
- electrical conductivity (ohmic resistance) ≤ 104Ω
