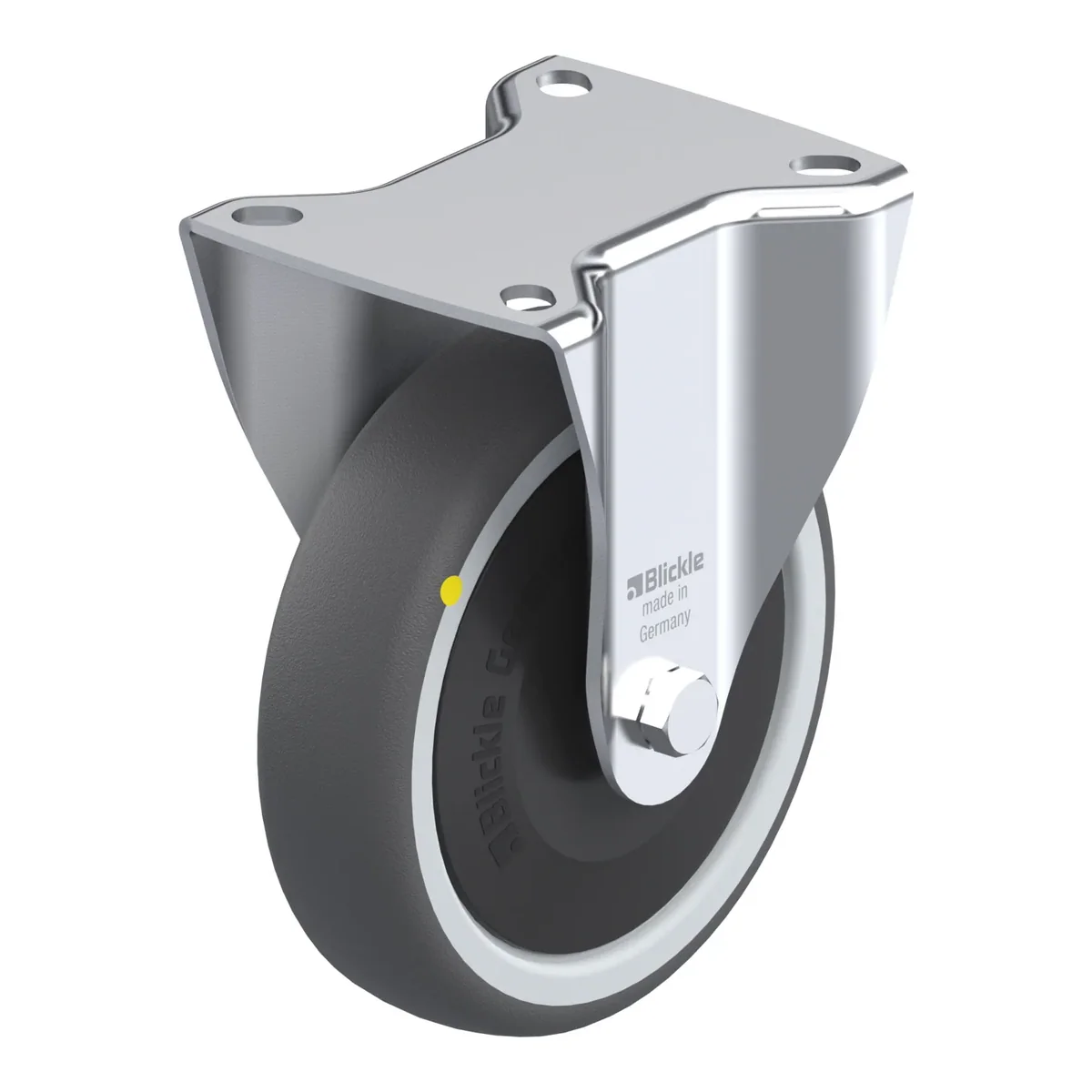

B-PATH 125KF-ELS – fiksni točkić Blickle

Šifra 852176

B-PATH 125KF-ELS

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-PATH 125KF-ELS je fiksni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 160 kg pri 4 km/h (statički 400 kg). Ukupna visina je 150 mm. Cijena je 71.53 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, electrically conductive, non-marking

71.53 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852176
EAN4047526188771
Promjer točka125 mm
Širina točka32 mm
Ukupna visina150 mm
Nosivost pri 4 km/h160 kg
Statička nosivost400 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
