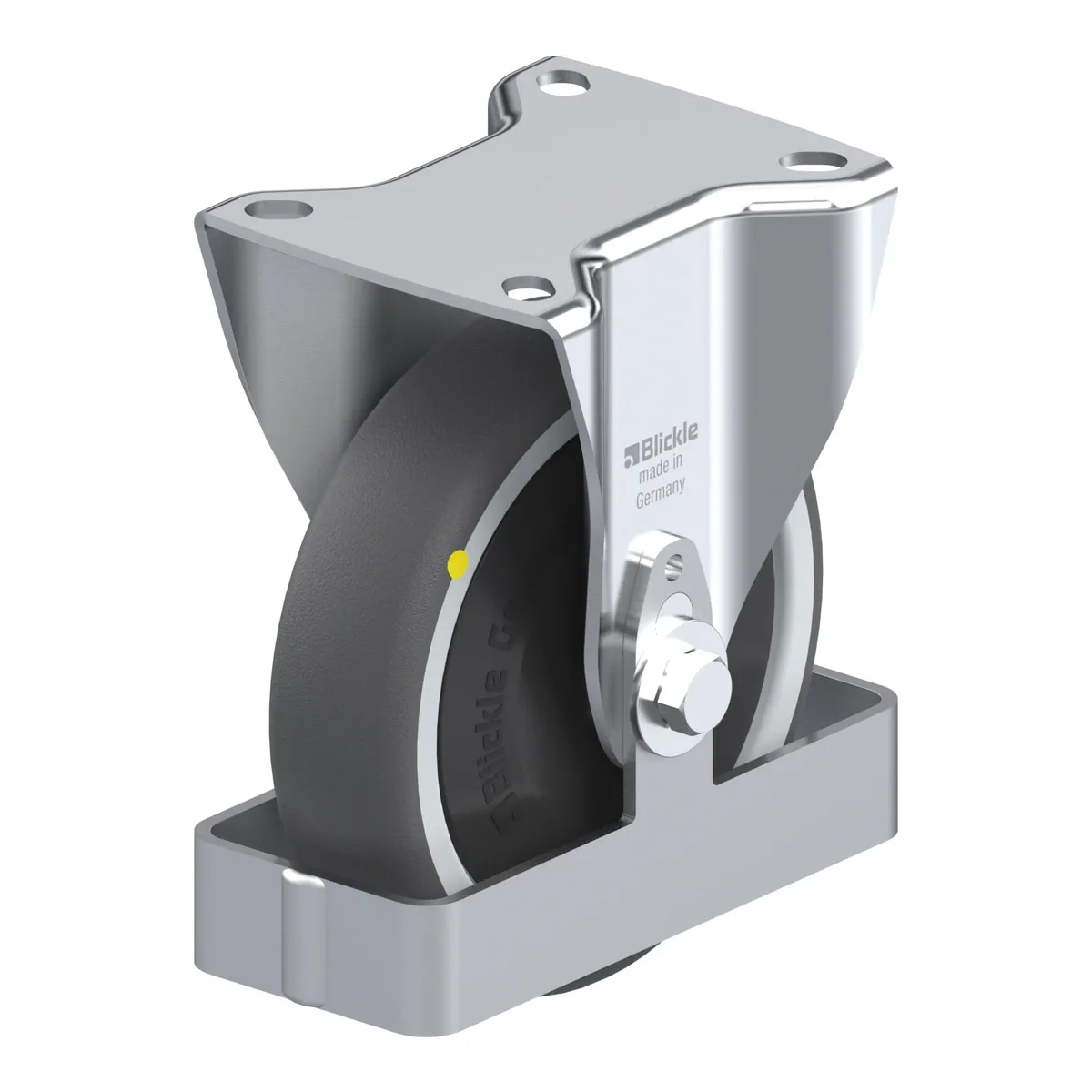

B-PATH 125KF-ELS-FS – fiksni točkić Blickle

Šifra 938747

B-PATH 125KF-ELS-FS

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-PATH 125KF-ELS-FS je fiksni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 160 kg pri 4 km/h (statički 400 kg). Ukupna visina je 150 mm. Cijena je 125.23 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, steel foot guard, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, electrically conductive, non-marking

125.23 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla938747
EAN4047526397173
Promjer točka125 mm
Širina točka32 mm
Ukupna visina150 mm
Nosivost pri 4 km/h160 kg
Statička nosivost400 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
