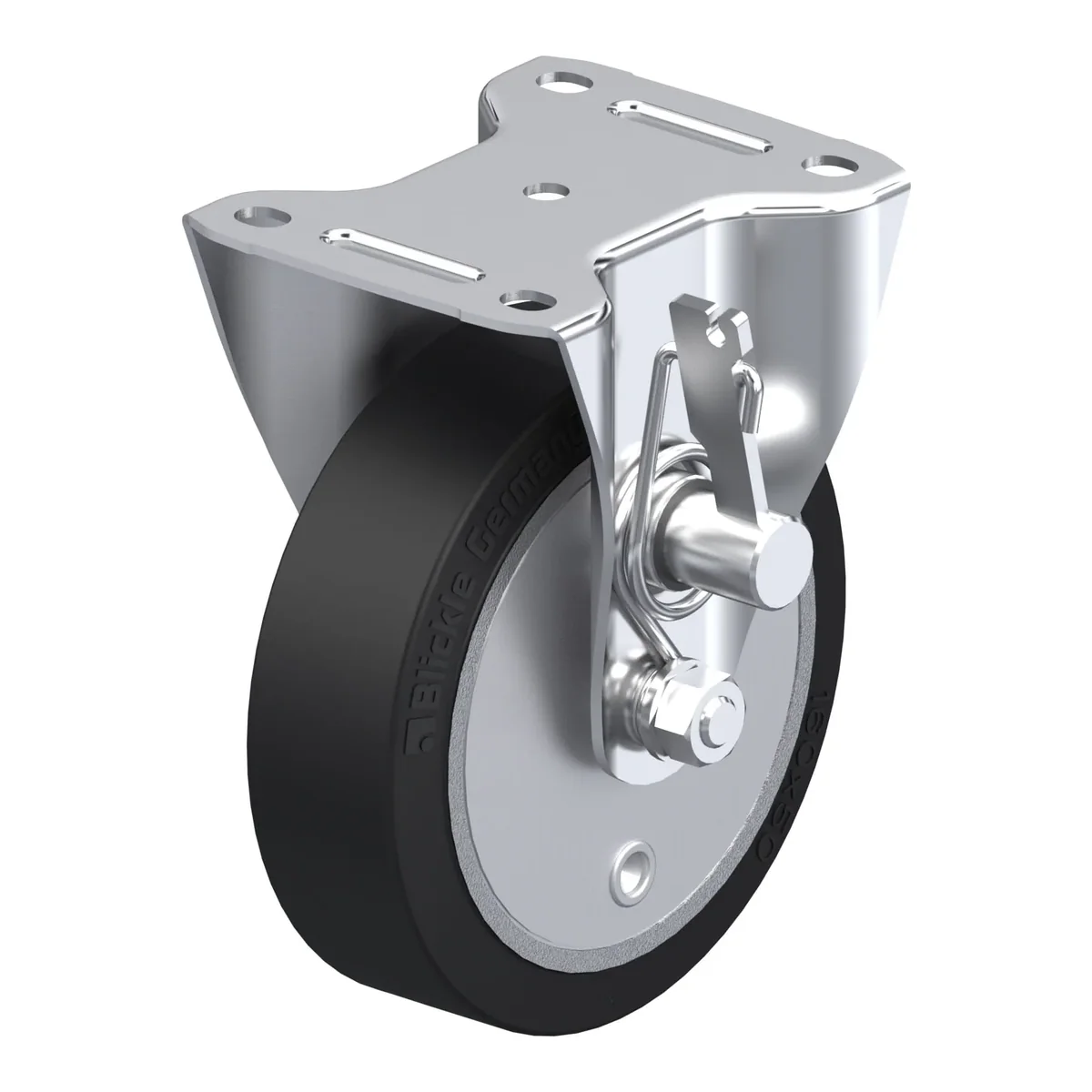

B-GEV 160K-TML – fiksni točkić Blickle

Šifra 842746

B-GEV 160K-TML

Fiksni točkić, Blickle, Made in Germany

Ukratko: B-GEV 160K-TML je fiksni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 195 mm. Cijena je 391.65 KM s PDV-om.

Pressed steel fixed castor, medium duty design, with top plate fitting, with dead man’s brake, heavy duty wheel, with elastic solid rubber tyre, with cast iron wheel centre

391.65 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla842746
EAN4047526122973
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free

Točak

  • tyre: high-quality elastic solid rubber in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: rugged grey cast iron, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
  • wheel centre is approximately 4 mm wider than the specified wheel width
