Šifra 849836
B-V 252R-EL-FA

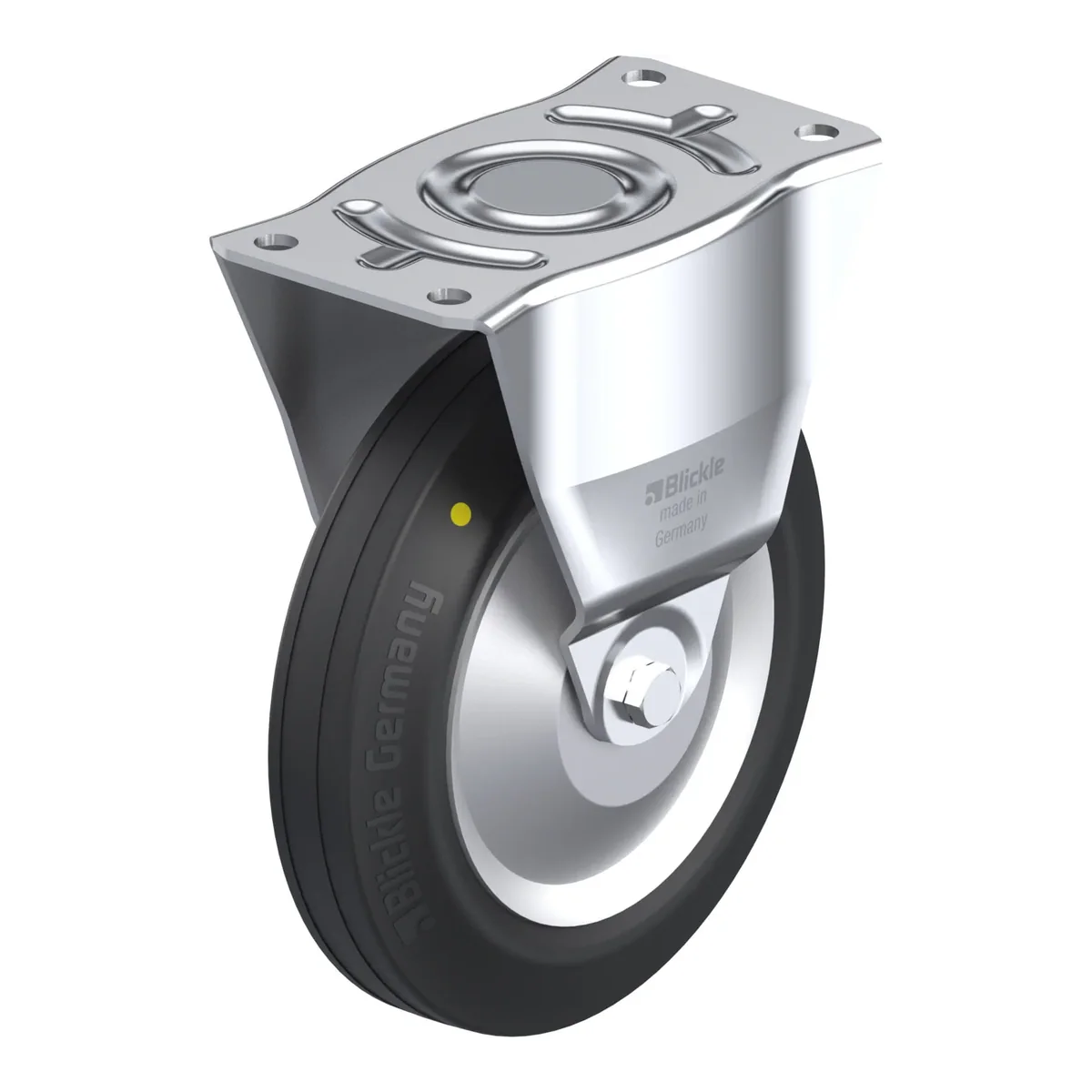

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-V 252R-EL-FA je fiksni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 295 kg pri 4 km/h (statički 737.5 kg). Ukupna visina je 295 mm. Cijena je 266.19 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, with steel thread guard, electrically conductive
266.19 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 849836 |
|---|---|
| EAN | 4047526156428 |
| Promjer točka | 250 mm |
| Širina točka | 60 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 295 kg |
| Statička nosivost | 737.5 kg |
| Veličina ploče | 220 x 130 mm |
| Razmak rupa | 185.0 x 100.0 mm |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
