Šifra 739299

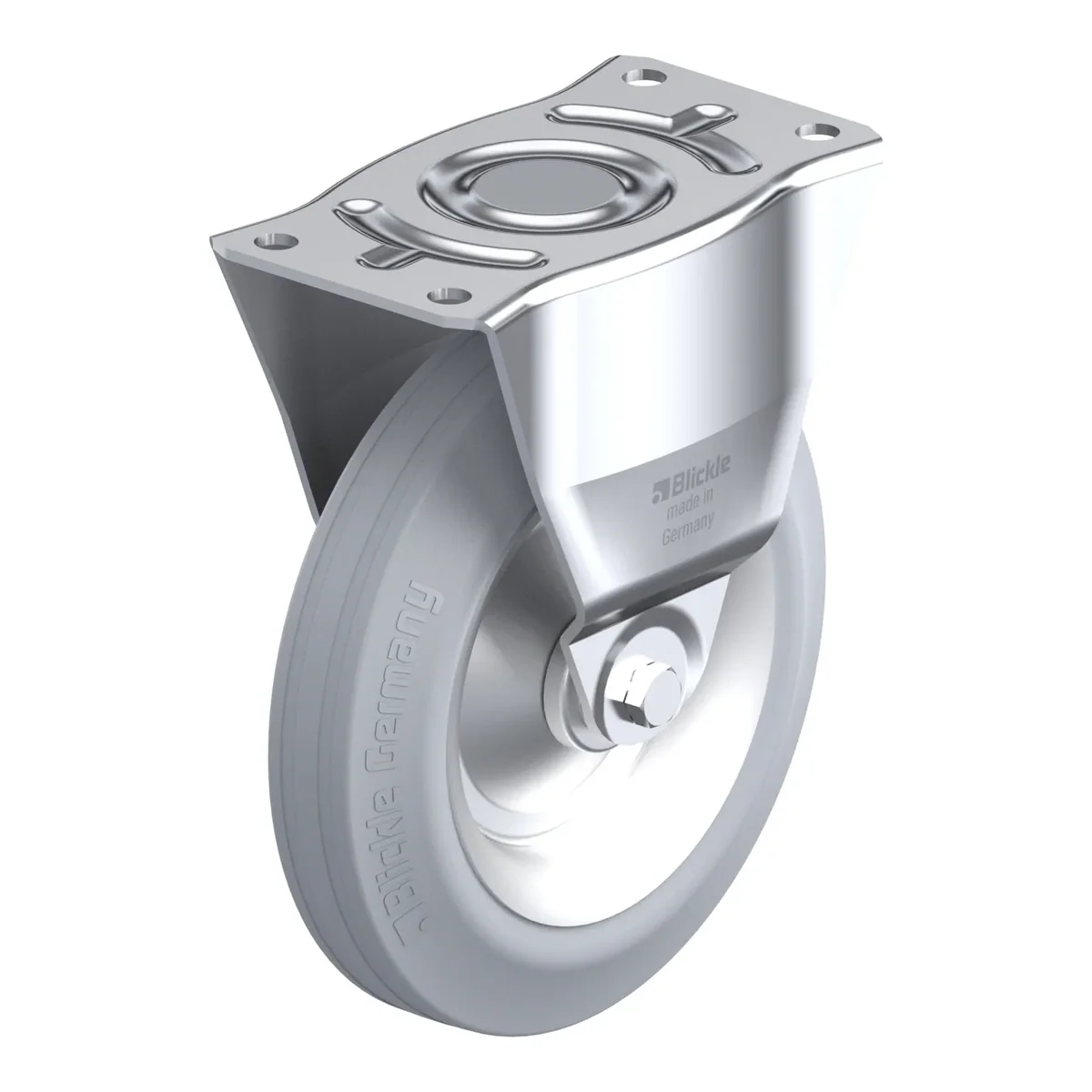

B-V 252R-SG
Fiksni točkić, Blickle, Made in Germany
Ukratko: B-V 252R-SG je fiksni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 295 kg pri 4 km/h (statički 737.5 kg). Ukupna visina je 295 mm. Cijena je 237.77 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design, non-marking, grey
237.77 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 739299 |
|---|---|
| EAN | 4047526001926 |
| Promjer točka | 250 mm |
| Širina točka | 60 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 295 kg |
| Statička nosivost | 737.5 kg |
| Veličina ploče | 220 x 130 mm |
| Razmak rupa | 185.0 x 100.0 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
