Šifra 36632
B-V 252R

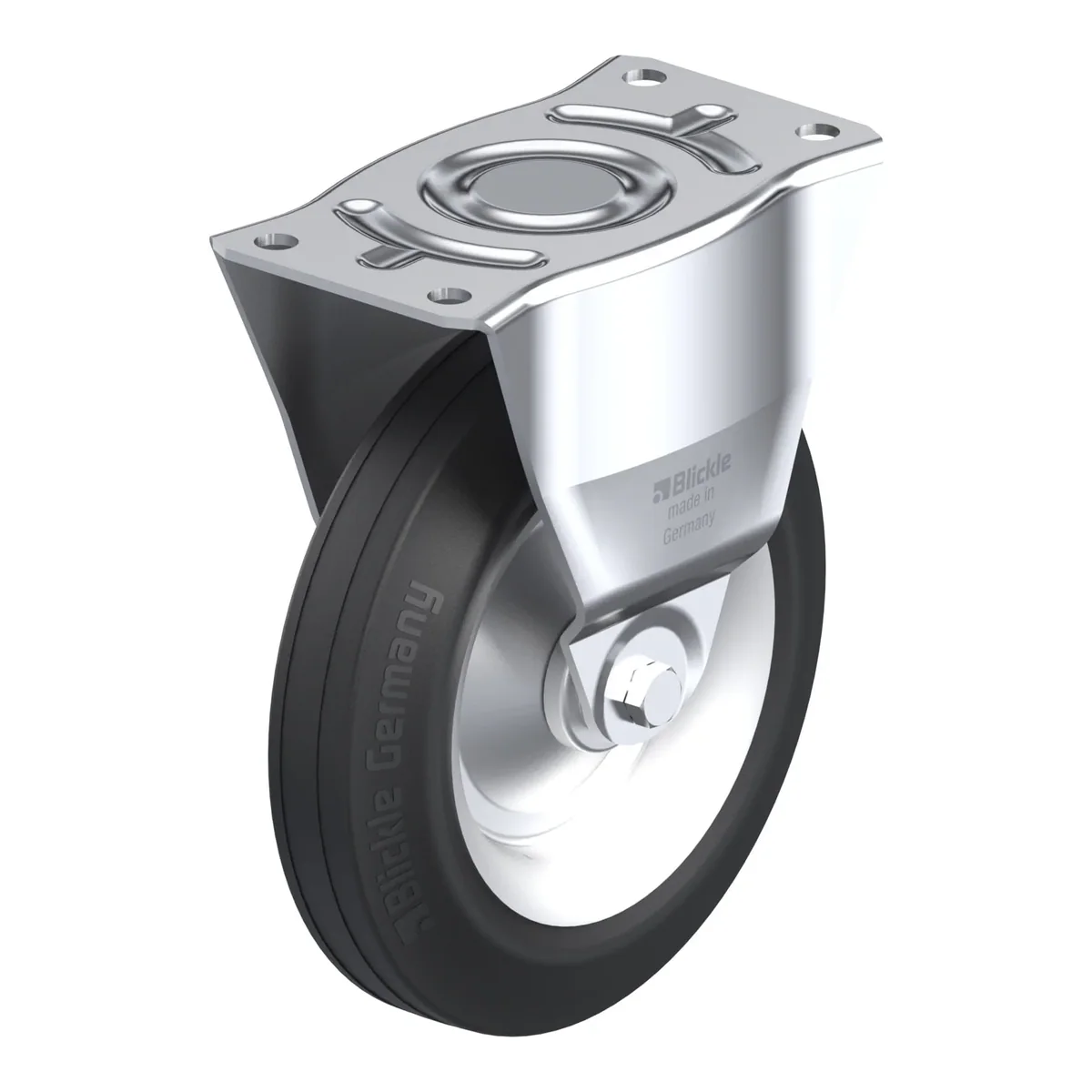

Fiksni točkić, Blickle, Made in Germany
Ukratko: B-V 252R je fiksni točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 295 kg pri 4 km/h (statički 740 kg). Ukupna visina je 295 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 174.41 KM s PDV-om.
Pressed steel fixed castor, medium duty design, with top plate fitting, wheel, with standard solid rubber tyre, with pressed steel rim, reinforced design
174.41 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 36632 |
|---|---|
| EAN | 4047526036638 |
| Promjer točka | 250 mm |
| Širina točka | 60 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 295 kg |
| Statička nosivost | 740 kg |
| Veličina ploče | 220 x 130 mm |
| Razmak rupa | 185.0 x 100.0 mm |
| Tvrdoća gazišta | 80 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 6.3 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
