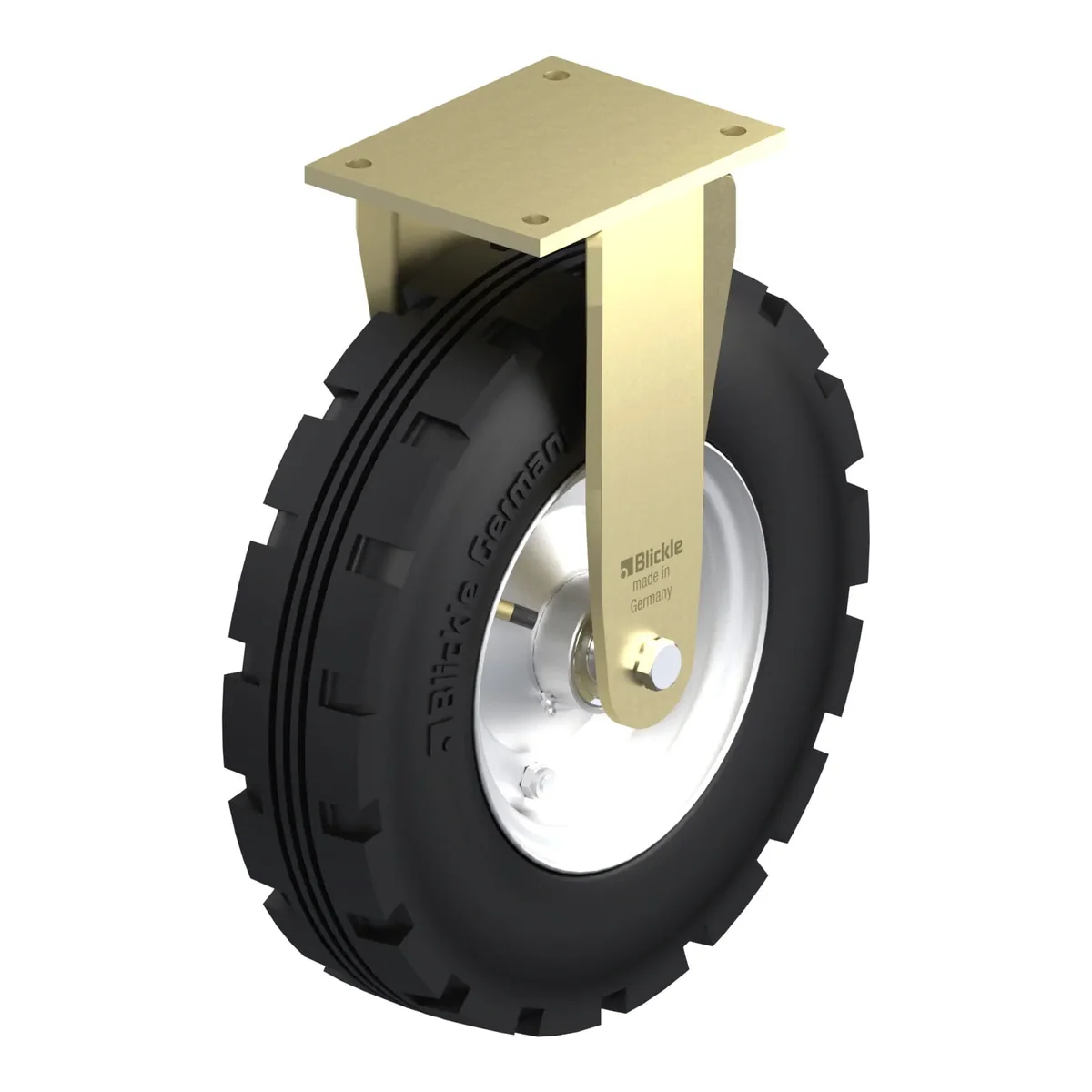

Šifra 631796
BS-PS 432K
Fiksni točkić, Blickle, Made in Germany
Ukratko: BS-PS 432K je fiksni točkić Blickle promjera 420 mm, širine 115 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 480 mm. Cijena je 793.26 KM s PDV-om.
Heavy duty welded steel fixed castor, heavy duty wheel, with pneumatic tyre
793.26 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 631796 |
|---|---|
| EAN | 4047526631796 |
| Promjer točka | 420 mm |
| Širina točka | 115 mm |
| Ukupna visina | 480 mm |
| Nosivost pri 4 km/h | 750 kg |
| Statička nosivost | 1875 kg |
| Veličina ploče | 200 x 160 mm |
| Razmak rupa | 165.0 x 130.0 mm |
Nosač
- particularly robust welded steel construction
- zinc-plated, yellow-passivated, Cr6-free
Točak
- tyre: pneumatic tyre with zig-zag profile, hardness 60 Shore A, colour black, 8-ply rating
- rim: heavy pressed steel, with welded tubular steel hub, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +50 °C
- the wheel and tyre dimensions provided here apply to new tyres that are not bearing a load. Their width and diameter may change when they are in use.
- speeds up to 25 km/h with reduced load capacity
