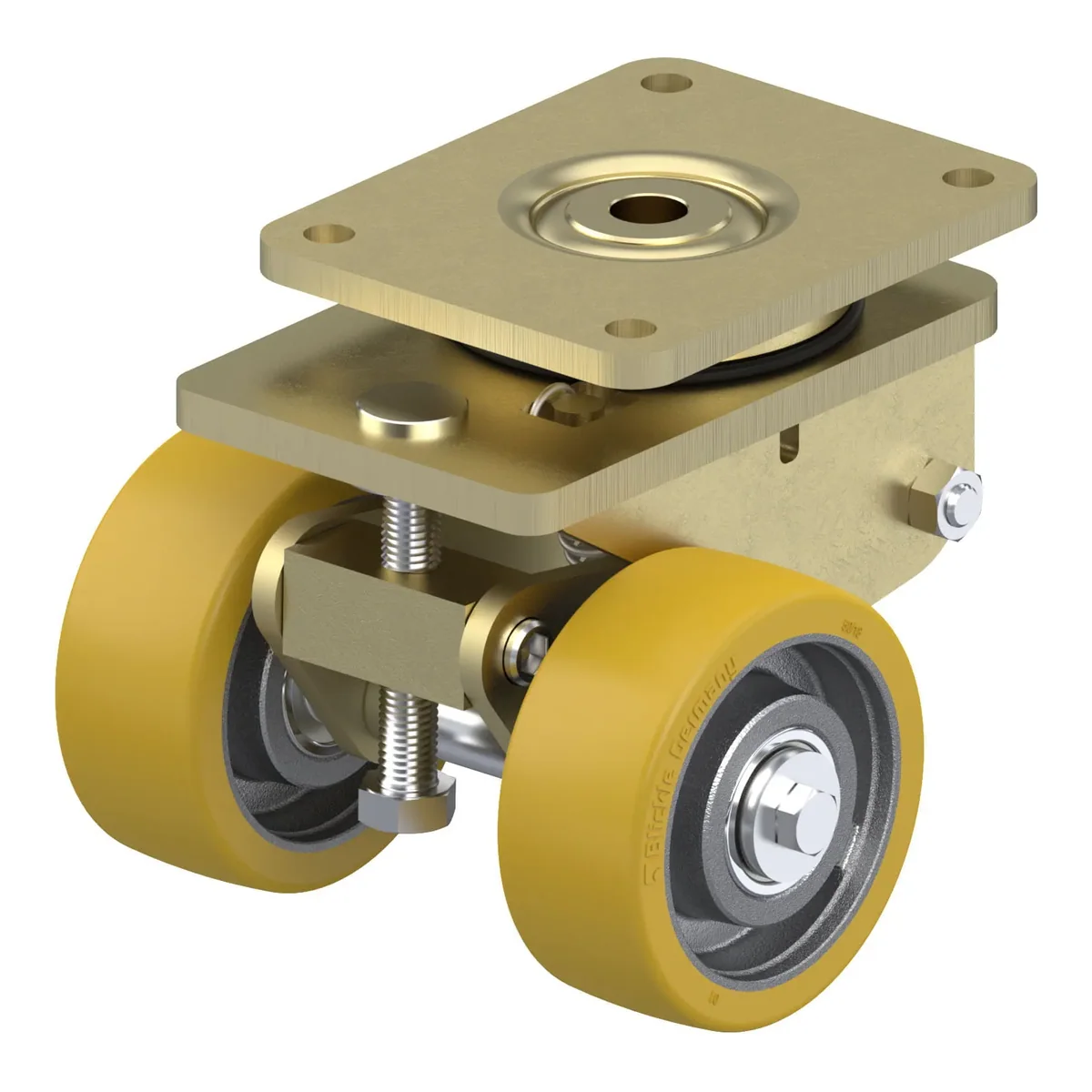

HRLSD-GTH 127K – nivelirni točkić Blickle

Šifra 912086

HRLSD-GTH 127K

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLSD-GTH 127K je nivelirni točkić Blickle promjera 125 mm, širine 50 mm, nosivosti 1300 kg pri 4 km/h (statički 3250 kg). Ukupna visina je 170 mm. Cijena je 1085.09 KM s PDV-om.

Levelling castor, with integrated truck lock and top plate fitting, welded steel version, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

1085.09 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla912086
EAN4047526341299
Promjer točka125 mm
Širina točka50 mm
Ukupna visina170 mm
Nosivost pri 4 km/h1300 kg
Statička nosivost3250 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset70 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • dust and splash-proof
  • welded guide sleeve for extremely strong truck lock
  • wheels and truck lock can be levelled using a wrench (SW24)
  • Grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: rugged grey cast iron, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
