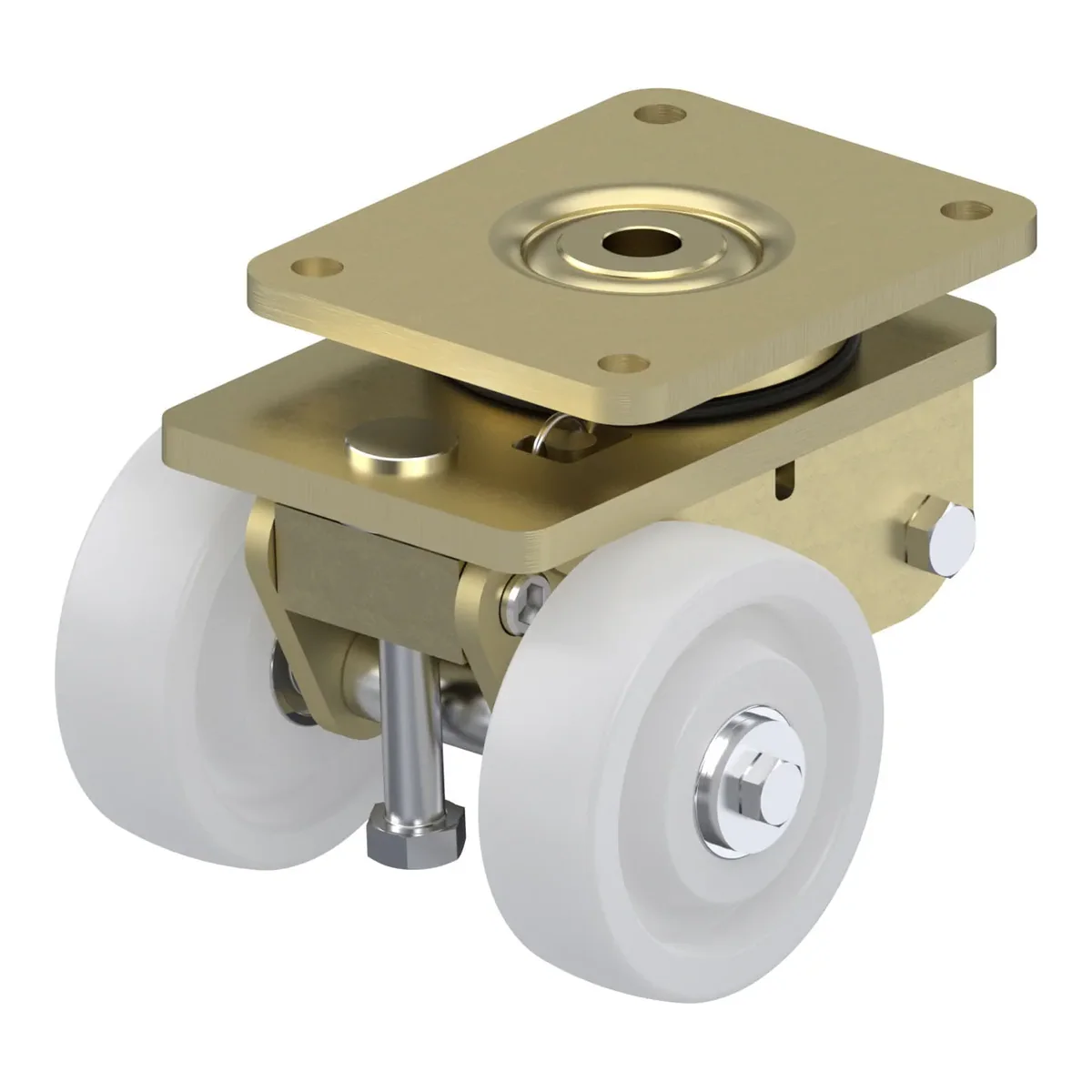

HRLSD-SPO 125K – nivelirni točkić Blickle

Šifra 912085

HRLSD-SPO 125K

Nivelirni točkić, Blickle, Made in Germany

Ukratko: HRLSD-SPO 125K je nivelirni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 1300 kg pri 4 km/h (statički 3250 kg). Ukupna visina je 170 mm. Cijena je 928.75 KM s PDV-om.

Levelling castor, with integrated truck lock and top plate fitting, welded steel version, nylon heavy duty wheel

928.75 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla912085
EAN4047526341282
Promjer točka125 mm
Širina točka40 mm
Ukupna visina170 mm
Nosivost pri 4 km/h1300 kg
Statička nosivost3250 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset70 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • dust and splash-proof
  • welded guide sleeve for extremely strong truck lock
  • wheels and truck lock can be levelled using a wrench (SW24)
  • Grease nipple

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
